Autodesk ForgeAPIメモ⑧ getProperties()

APIs | Autodesk Forge

Autodesk.Viewing.Model

const target_dbId = 12634;
viewer.model.getProperties(target_dbId, props => {
    props.properties.forEach(prop => {
        console.log(prop.attributeName);
        console.log(prop.displayCategory);
        console.log(prop.displayName + ((prop.type === 11) ? "[dbId]" : ""),);
        console.log(prop.displayValue,);
        console.log(prop.hidden);
        console.log(prop.precision);
        console.log(prop.type);
        console.log(prop.units);
    });
})

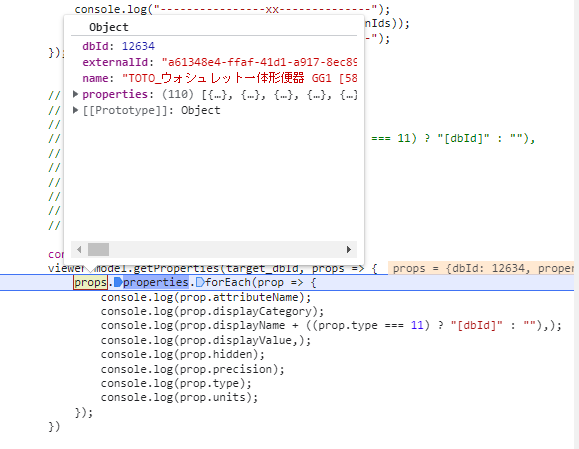

propsの中身
https://autodeskviewer.com/viewers/latest/docs/global.html#GetPropertiesResult

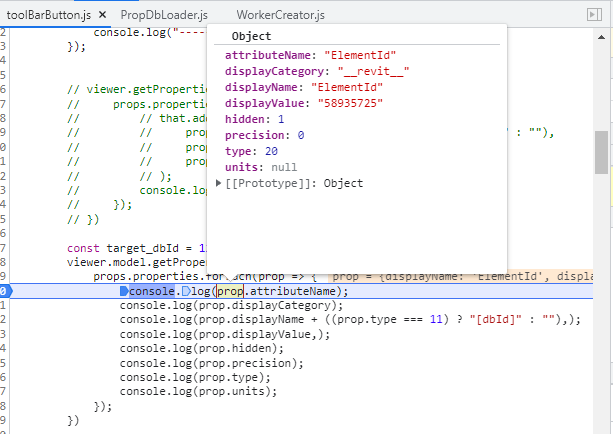

propの中身
https://autodesk-forge.gitee.io/viewer-docs/global.html#PropertyResult

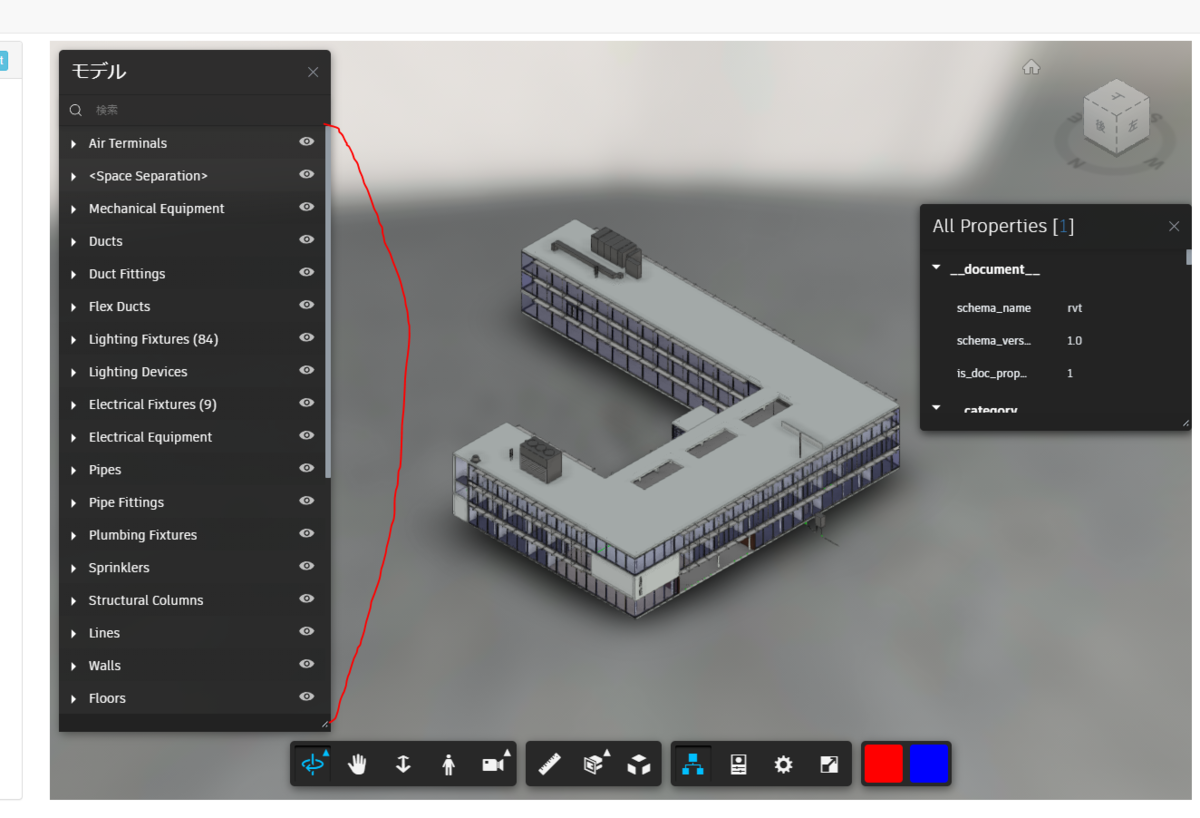

Autodesk ForgeAPIメモ⑥ getInstanceTree()

var instanceTree = viewer.model.getData().instanceTree;

// instanceTreeの第1階層のデータを取得
instanceTree.enumNodeChildren(1, function(childrenIds) {
     console.log("------------------------------");
     console.log(childrenIds);
     console.log(instanceTree.getNodeName(childrenIds));
     console.log(instanceTree.getNodeType(childrenIds));
     console.log(instanceTree.getChildCount(childrenIds));
     console.log("------------------------------");
});

実行結果

--------------childrenIds----------------
toolBarButton.js:54 ------------------------------
toolBarButton.js:55 1713
toolBarButton.js:56 Air Terminals
toolBarButton.js:57 0
toolBarButton.js:58 2
toolBarButton.js:59 ------------------------------
toolBarButton.js:54 ------------------------------
toolBarButton.js:55 1748
toolBarButton.js:56 <Space Separation>
toolBarButton.js:57 0
toolBarButton.js:58 12
toolBarButton.js:59 ------------------------------
toolBarButton.js:54 ------------------------------
toolBarButton.js:55 2005
toolBarButton.js:56 Mechanical Equipment
toolBarButton.js:57 0
toolBarButton.js:58 7
toolBarButton.js:59 ------------------------------
toolBarButton.js:54 ------------------------------
toolBarButton.js:55 2022
toolBarButton.js:56 Ducts
toolBarButton.js:57 0
toolBarButton.js:58 2
toolBarButton.js:59 ------------------------------
toolBarButton.js:54 ------------------------------
toolBarButton.js:55 2034
toolBarButton.js:56 Duct Fittings
toolBarButton.js:57 0
toolBarButton.js:58 9
toolBarButton.js:59 ------------------------------
toolBarButton.js:54 ------------------------------
toolBarButton.js:55 2589
toolBarButton.js:56 Flex Ducts
toolBarButton.js:57 0
toolBarButton.js:58 1
toolBarButton.js:59 ------------------------------

  instanceTree.enumNodeChildren(1713, function(childrenIds) {
      console.log("----------------xx--------------");
      console.log(instanceTree.getNodeName(childrenIds));
      console.log("----------------xx--------------");
  });
----------------xx--------------
toolBarButton.js:81 M_Supply Diffuser - Rectangular Face Round Neck
toolBarButton.js:82 ----------------xx--------------
toolBarButton.js:80 ----------------xx--------------
toolBarButton.js:81 M_Supply Diffuser - Sidewall
toolBarButton.js:82 ----------------xx--------------

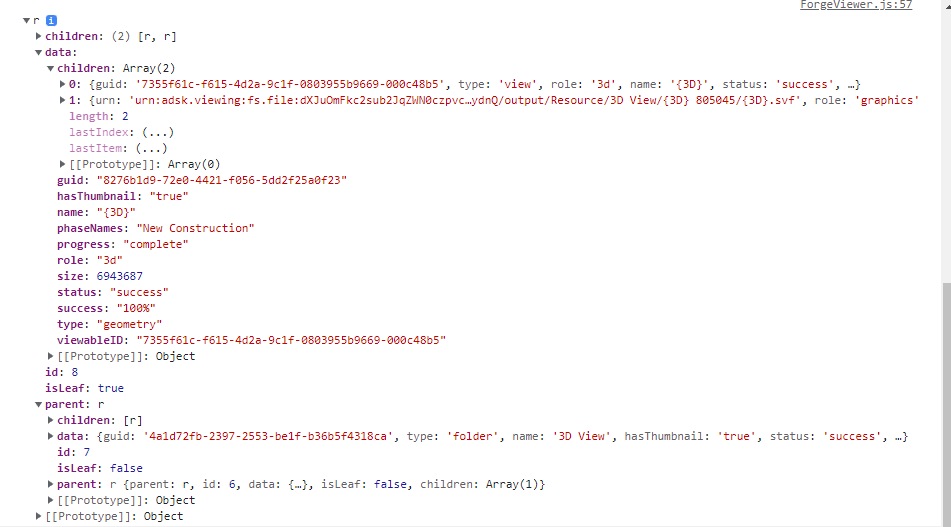

Autodesk ForgeAPIメモ①

doc = NOP_VIEWER.model.getDocumentNode()

上記のAPIで描画している3Dモデルのmanifest 情報が取得できる。


manifet取得APIと同じ情報が取得できる
Model Derivative API
https://forge.autodesk.com/en/docs/model-derivative/v2/reference/http/manifest/urn-manifest-GET/

{
                    "guid": "8276b1d9-72e0-4421-f056-5dd2f25a0f23",
                    "type": "geometry",
                    "role": "3d",
                    "name": "{3D}",
                    "viewableID": "7355f61c-f615-4d2a-9c1f-0803955b9669-000c48b5",
                    "phaseNames": "New Construction",
                    "status": "success",
                    "hasThumbnail": "true",
                    "progress": "complete",
                    "children": [
                        {
                            "guid": "7355f61c-f615-4d2a-9c1f-0803955b9669-000c48b5",
                            "type": "view",
                            "role": "3d",
                            "name": "{3D}",
                            "status": "success",
                            "progress": "complete",
                            "camera": [
                                -150.587158203125,
                                252.19168090820312,
                                228.48350524902344,
                                55.39960479736328,
                                46.20491027832031,
                                22.496734619140625,
                                0.40824830532073975,
                                -0.40824830532073975,
                                0.8164966106414795,
                                1.3768740892410278,
                                0,
                                1,
                                1
                            ]
                        },
                        {
                            "urn": "urn:adsk.viewing:fs.file:dXJuOmFkc2sub2JqZWN0czpvcy5vYmplY3Q6andhZWR0M3d2Z2Y5Y2FzOGZzZ3F5eG9yaXA2a2d5cXgtMjAyMjA4MjZ4eHh4L3JtZWFkdmFuY2Vkc2FtcGxlcHJvamVjdC5ydnQ/output/Resource/3D View/{3D} 805045/{3D}.svf",
                            "role": "graphics",
                            "mime": "application/autodesk-svf",
                            "guid": "c94cec21-a581-d9f8-3789-a9ef9b67d6b4",
                            "type": "resource"
                        },
                        {
                            "urn": "urn:adsk.viewing:fs.file:dXJuOmFkc2sub2JqZWN0czpvcy5vYmplY3Q6andhZWR0M3d2Z2Y5Y2FzOGZzZ3F5eG9yaXA2a2d5cXgtMjAyMjA4MjZ4eHh4L3JtZWFkdmFuY2Vkc2FtcGxlcHJvamVjdC5ydnQ/output/Resource/3D View/{3D} 805045/{3D}1.png",
                            "role": "thumbnail",
                            "mime": "image/png",
                            "guid": "98a94f3c-7143-4504-ab1f-36b16f5bfa34",
                            "type": "resource",
                            "resolution": [
                                100,
                                100
                            ],
                            "status": "success"
                        },

Forge ViewerAPI Model

Model

APIs | Autodesk Forge

No API Memo
TD getInstanceTree() ModelのinstancdTreeオブジェクトを取得可能 Autodesk ForgeAPIメモ⑥ getInstanceTree() - bigmac-jp blog
TD getFuzzyBox(options) boundingBoxを取得 three.js box3を取得可能
TD is2d()
TD is3d()
TD isSVF2()
TD isPdf(onlyPdfSource)
TD isRevitPdf()
TD isLeaflet()
TD isPageCoordinates()
TD isSceneBuilder()
TD isPageCoordinates()
TD isSceneBuilder()
TD getData() 返却値にinstanceTreeがふくまれている。その他いろいろなデータが取得可能
TD getDocumentNode()
TD getRoot()
TD getRootId()
TD getUnitData(unit) l
TD getUnitScale() 距離の単位取得可能
TD getUnitString() 表示単位の取得 設定->表示単位
TD getDisplayUnit() Returns a standard string representation of the model’s display unit. モデルの標準単位の取得が可能
TD getMetadata(itemName, subitemName, defaultValue)
TD getDefaultCamera()
TD isAEC()
TD hasPageShadow()
TD getUpVector() 上方向のベクトルの取得が可能 x(0,0,1) y(0,1,0) z(0,0,1)
TD geomPolyCount() ポリゴン数を取得可能
TD instancePolyCount() ポリゴン数を取得可能
TD isLoadDone(checkTextures)
TD isObjectTreeCreated()
TD isObjectTreeCreated()
TD getPropertyDb() PropDbLoaderが取得できる。中身はinstanceTreeなどがある。worker用???
TD getProperties(dbId, onSuccessCallback, onErrorCallback) dbIDを指定してオブジェクトのPropertiesを取得可能 取得項目https://mtaryo.hatenablog.com/entry/2022/09/06/095452?_ga=2.98589595.461683717.1662352014-704825042.1600853534
TD getProperties2(dbId, onSuccessCallback, onErrorCallback, options)
TD getBulkProperties(dbIds, options, onSuccessCallback, onErrorCallback) 複数のdbidをしていして、propertyを取得可能
TD getBulkProperties2(dbIds, options, onSuccessCallback, onErrorCallback)
TD getPropertySetAsync(dbIds, options) 不明。。。
TD getPropertySet(dbIds, onSuccessCallback, onErrorCallback, options)
TD getExternalIdMapping(onSuccessCallback, onErrorCallback)
TD getLayerToNodeIdMapping(onSuccessCallback, onErrorCallback)
TD getObjectTree(onSuccessCallback, onErrorCallback)
TD isObjectTreeLoaded()
TD search(text, onSuccessCallback, onErrorCallback, attributeNames, options)
TD findProperty(propertyName)
TD getTopology(index)
TD hasTopology()
TD fetchTopology(maxSizeMB)
TD hasGeometry()
TD getFragmentPointer(fragId)
TD clone()

Autodesk Forge View Portデータ連携 対象

Revit上で作成した2D SheetをForge Viewer上のgetViewportsファンクションで取得するには下記の制限がある。

・Revit上で2D Sheet View Portのプロパティ:Crop View(ビューをトリミング)にチェックが入っていること
下記参照(Crop View)
View Properties | Revit 2020 | Autodesk Knowledge Network


・平面図、構造図、天井伏図の2D図面シートのみが対応。吹き出し、エリアプランなどはの対象外がるシートはサポートされていない。

・部分切断領域が存在する場合サポート対象外

下記参照
autodesk forge - Viewport Data on Revit File Exists but Could Not Be Found - Stack Overflow

Azure Appservice ローカルGitでのエラー回避

Azure app serviceでローカルGitでプログラムのデプロイを実行した場合、エラーが発生した。
下記の解決方法で対応。

Azureポータル->APP Service->構成->アプリケーション設定で下記を設定
SCM_DO_BUILD_DURING_DEPLOYMENT=FALSE


エラーを確認したところ、コミット&PUSHしたプログラムをビルドしようとしてエラーになっている感じだった。
上記の設定で自動ビルドは実行しない設定に変更。(今回はデモ環境で自動ビルドは不要のため、この対応方法で回避できた。)

参考:
https://stackoverflow.com/questions/63846235/azure-app-service-getting-error-while-deploying-react-js-application
